Compound Binocular Light Microscope With Long W.D. Infinity Plan

Model Number : NCM-T2000

Certification : CE

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 2000sets per month

Packaging Details : Carton, or as clients require

Model : NCM-T2000

Eyepiece : WF10×/18mm

Nosepiece : Quadruple

Objective : Infinity Plan 5x / 10x / 20x / 40x

Stage : 200×140mm/Travel 76×52mm

Illumination : 6V/30W Halogen

Contact Now

Binocular Metallurgical Optical Microscope Long W.D. Infinity Plan NCM-T2000

Description

Metallographic optical microscopes allow the user to view opaque items at high magnification with reflected and transmitted light, which are used for a variety of specialty applications such as semiconductor silicon wafer manufacturing, inspection and quality control like inspection of grain size, surface inclusions and defects, crystallography, and analysis of sand castings in iron metal foundries.

They can also be used for metallic grain microstructure analysis and identification, measurement of thin films, electroplating coatings, microscopic analysis of opaque surfaces, study of prehistoric stone age tools and artifacts, historical preservation, the study of metallurgy, and metal patina analysis.

Our metallurgical microscopes are available in binocular and trinocular models with both upright,inverted and boom stand microscope systems, while NCM-T2000 series metallurgical optical microscope is widely used for PCB board, LCD display and metal structure observation and inspection. With Ingenious stand and convenient operation, it will be your best choice.

Specification:

Items	Specification		NCM-T2000
Eyepiece	WF10×/18mm		●
	Reticule Eyepiece WF10×/18mm (0.1mm)		●
	WF5×		○
	WF12.5×		○
	WF16×		○
Infinity Plan Objective Lens (No Cover Glass)	5×/0.11	W.D=12.10mm	●
	10×/0.25	W.D=4.75mm	●
	20×/ 0.4 (S)	W.D=2.14mm	○
	40×/0.65 (S)	W.D=0.45mm	○
Long Working Distance Infinity Plan Objective (No Cover Glass)	20×/0.4 (S)	W.D=8.35mm	●
	40×/0.65 (S)	W.D=3.90mm	●
	50×/0.7(S)	W.D=1.95mm	○
	80×/0.8 (S)	W.D=0.85mm	○
Seidentopf Binocular Head	Inclined 30°, Rotatable 360° Interpupilary Distance: 50 -75mm		●
Seidentopf Trinocular Head	Inclined 30°, Rotatable 360° Interpupilary Distance: 50-75mm Light Distribution: 80:20		○
Nosepiece	Quadruple		●
Mechanical Stage	Stage Size: 200×140mm, Travel: 76mm×52mm Coaxial Coarse and Fine Focusing Knobs		●
Reflection Illumination	6V/20W Halogen Lamp
	6V/30W Halogen Lamp		●
Filter	Five-hole Filter Unit (Blue, Green, Amber, Grey, Empty)		●
Polarizing Attachment	Analyzer/Polarizer		○
C-mount	1×		○
	0.47× (Focus Adjustable)		○
	0.5X (Focus Adjustable)

Note: ●Standard Outfit, ○Optional

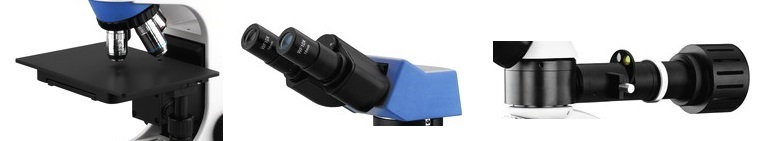

Features:

Compound Binocular Light Microscope With Long W.D. Infinity Plan

Packing Size: 570mm×275mm×450mm
Gross Weight: 10.5 kgs
Net Weight: 8 kgs
