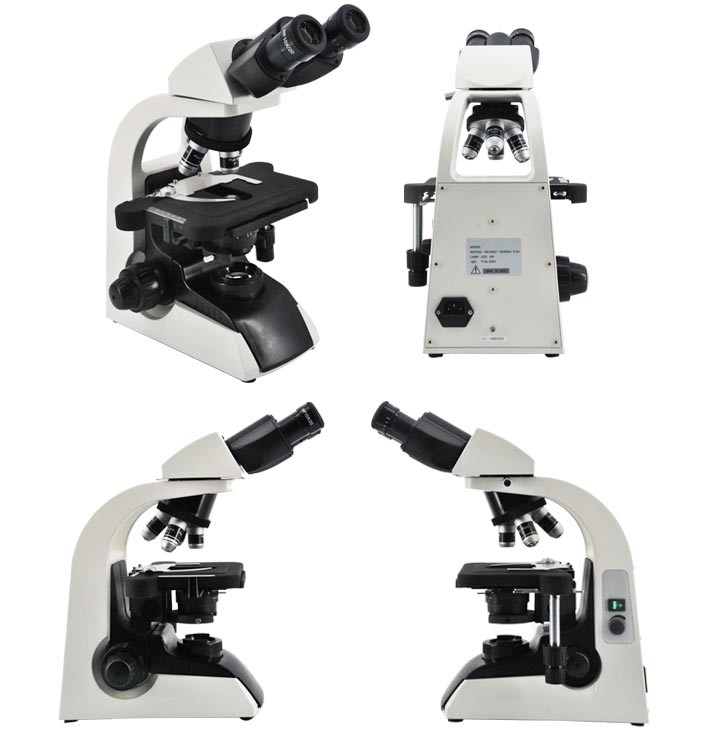

| | Adopting many new structure and new technology, NCH-B2000 microscope has an advanced design, new outlook which makes the operators to use the microscope conveniently and safely.NCH-B2000 biological microscope can be used in medical and hygienic establishments, laboratory, research institutes and colleges for biology, pathologyornd, bacteriology observation, teaching and professional research,,clinical test and routine medical inspection. This microscope can also be used with many accessories to realize dark field, phase contrast, photography and CCTV function. Advanced technology and excellent cost performance. The ideal instrument in biological, histological, pathological field and can be widely used in academic demonstration and research. | | 1 | Excellent image quality with infinite optical system. | | 2 | Comfortable operating with ergonomic design. | | 3 | Kohler Illumination Halogen 12V/20W. Better illumination with sliding-in centerable condenser, convenient replacement with phase contrast and dark field condenser | | 4 | Seidentopf Binocular Head | | 5 | Infinite Plan Achromatic Objective, Total Manification: 40X-1000X | | 6 | Ceramic Surface Mechanical Stage | | 7 | Universal power supply 100-240V, 50/60Hz |  | To keep the work area clear and to avoid interference with observation operations, the X-direction travel guide does not extend out from the side of the stage. The main and sub-scale displays are designed for easy read-out. The stage can prevent the corrosion and scratches. | | | | NCH-B2000 | | Total Magnification | 40×-1000× | ● | | Optical System | Infinite optical system | ● | | Viewing Head | Siedentopf binocular viewing head, inclined at 30°,360°rotatable | ● | | Siedentopf trinocular viewing head, inclined at 30°,360°rotatable | ○ | | Built-in digital camera system | ○ | | Eyepiece | WF10×/20 | ● | | WF15×/16 | ○ | | Objective | Infinite plan achromatic objective 4×,10×,40×,100× | ● | | Nosepiece | Backward quadruple nosepiece | ● | | Backward quintuple nosepiece | ○ | | Focusing | Coaxial coarse & fine adjustment, range 22mm, fine division 0.002mm | ● | | Stage | Rectangular 230×150mm, cross travel 78×54mm, using low-positioned X/ Y coaxial control knob | ● | | Condenser | Abbe condenser NA1.25 with aperture diaphragm | ● | | Illumination | 12V/20W Halogen lamp, brightness adjustable | ● | | S-LED Illumination, brightness adjustable | ○ | | Optional | Photo attachment, Video attachment, Polarization set, Phase contrast kit | ○ | | Note: ●Standard Outfit, ○Optional |
|
